Food Analyzer

Maximal food safety

  • Sorting stream widths 600, 1200 and 1800 mm
  • Pneumatic diverter unit
  • Hygienic design
  • Even the smallest foreign bodies are detected
  • Compact dimensions
  • Excellent price/performance ratio


The Food Analyzer gives you the maximum of food safety in your manufacturing process. Perfect detection and removal of contaminating materials makes the Food Analyzer stand out from the competition. Glass, plastic (even when transparent), metal, paper, cardboard, stones, shells or a variety of organic contaminants such as pests: the Food Analyzer detects and ejects them all.


Food Analyzer

watch the VIDEO here >




The Food Analyzer - for maximum food safety

Application examples:
  • Nuts and seeds: cashews, walnuts, hazelnuts, pumpkin and sunflower seeds
  • Cereals: rolled oats, sesame seeds
  • Cheese: grated cheese
  • Meat: diced bacon
  • Frozen foods: peas, carrots
  • And many more
Detection of foreign bodies:
  • Plastics and membranes
  • Metals
  • Stones
  • Glass
  • Wood
  • Paper / cardboard
  • Shells
  • Insects

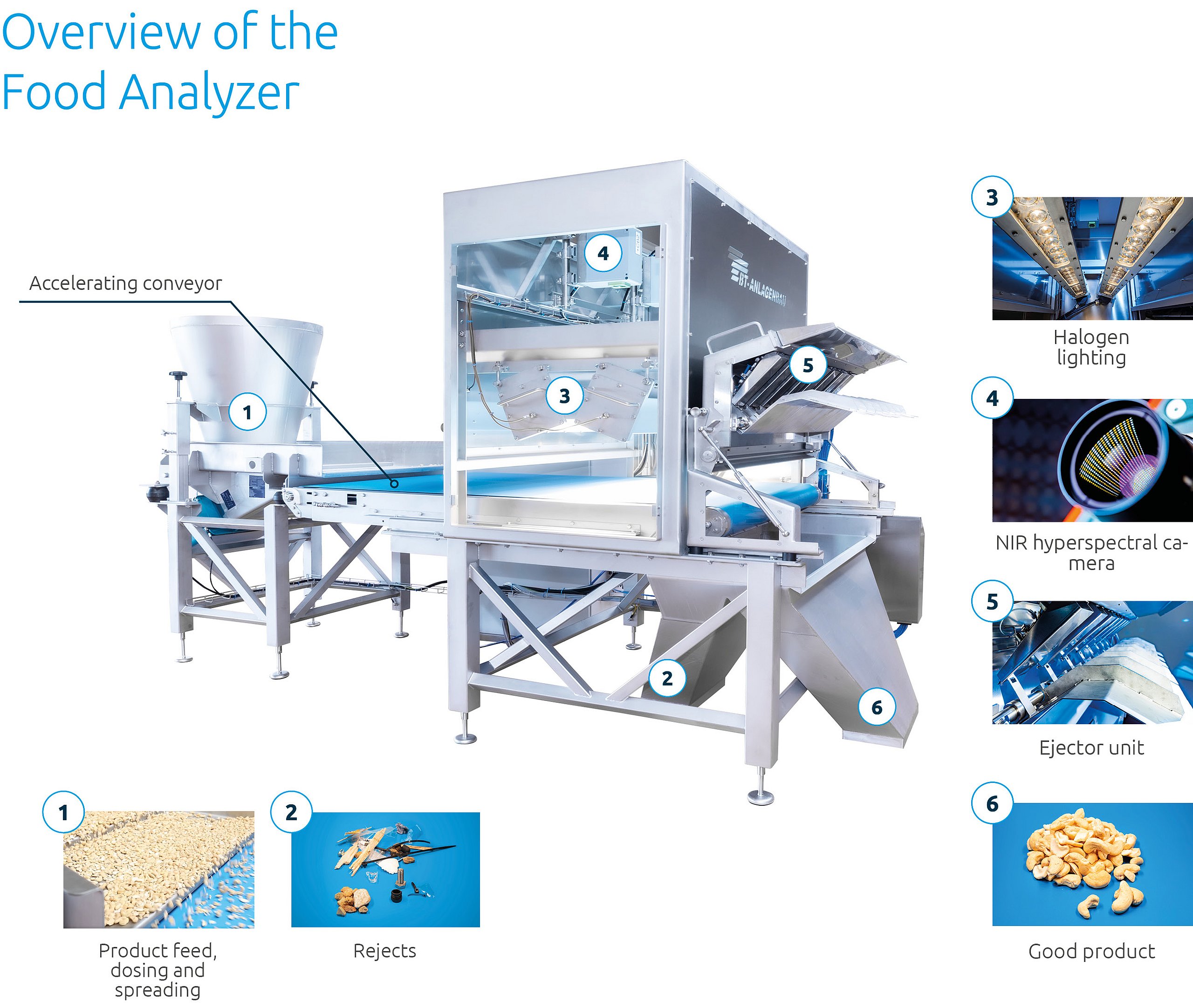

Functional principles

High-end cameras and pneumatic diverter flaps are the key components of the Food Analyzer. The image data are analysed in milliseconds by the high-speed computer and the diverter flaps swing into the product stream with perfect timing. The flaps remove lightweight pieces of plastic film or heavy stones or screws with the highest reliability. If a foreign body is in line with the edge between two flaps, or if it is bigger than one flap, both flaps are activated at the same time.
The short drop from the acceleration belt to the diverter flaps ensures that foreign bodies do not break up on impact or miss the flaps. Especially pieces of plastic film that float down on the air are reliably removed.

Hygienic design is a food-compatible construction standard that ensures the Food Analyzer is completely washable with a pressure washer. Every detail is taken care of and meets all the requirements in the wet and dry zones.

A well thought-out maintenance concept makes maintenance quicker and easier: for example the output unit which swings out to the side, or the lighting unit which can be easily pulled out.

Hyperspectral cameras in the food industry

Hyperspectral imaging is playing an increasing role in the food industry because it can detect things that can’t be detected reliably by ordinary colour cameras. The hyperspectral image analysis can tell the difference between the chemical composition of a piece of food and a foreign object. So for example it can recognise and eject a stone that looks just the same as a nut to the human eye or a colour camera.




BT-Anlagenbau is specialist and general contractor for plant construction in the area of storage technology and intralogistics, automation technology, image processing, switchgear manufacturing and electrical industrial installations. Our products are successfully deployed all over the world and stand for efficiency and quality.

We advise you from the initial planning phase to the successful completion of the project. Naturally, all our products comply with the latest current regulations and of course we are ISO & SCC certified.
